Product specifications for the Morton Vision Office Screen range.
Frame Measurements
Frame thickness - 28mm
Frame width - (side bars) - 50mm / (Top & bottom bar) - 22mm
Acoustic screen thickness (Core, foam & fabric) - 42mm
Foot slots in the frame are 290.5mm in from each end (Varied on screens 800mm W & smaller)
Materials
Frame - Powder coated aluminium
Stability feet - Steel
*stability feet are trip and wheelchair friendly
Feet raise the screen by 25mm and protrude 230mm from either side of the screen
Acrylic - 3mm clear and frosted acrylic
White gloss laminate - HPL (high pressure laminate)
Internal - 18mm solid core
Foam - 12mm fire retardant acoustic foam
Linking strips - Flexible PVC
Fire Safety Elements
Foam
12mm Combustion Modified Foam BS 5852-2: using ignition Source 5 Crib
Chipboard
Surface spread of Flames Class 2 tested to BS479-7
MDF
Surface spread of Flames Class 2 tested to BS479-7
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Aluminium
Extrusions has a melting of 660°C and is not considered to be a fire hazard.
Steel
Components are not considered to be a fire hazard.
Acrylic
Tested to BS 476 Part 7 with a Class 3 classification
Laminate
Tested to standard UNE EN 13501-1:07+A1:2010
Fabric
Woven Fabric - Morton Standard
Woven Collection has been tested to BS 5867-2: 2008 & BS 7176 2007

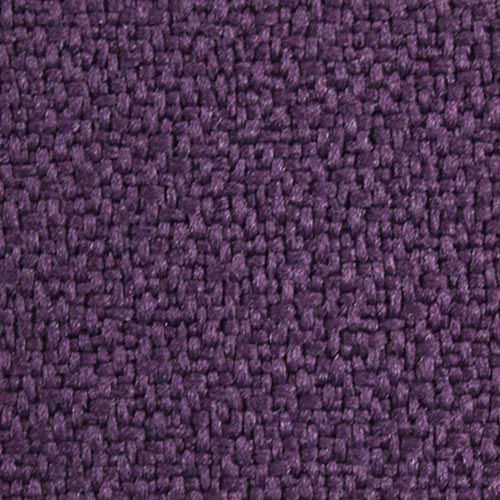

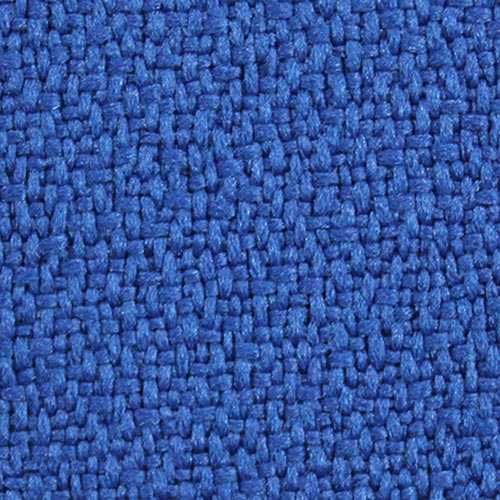

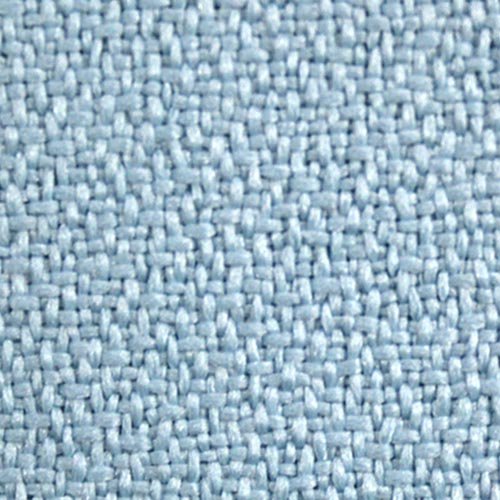

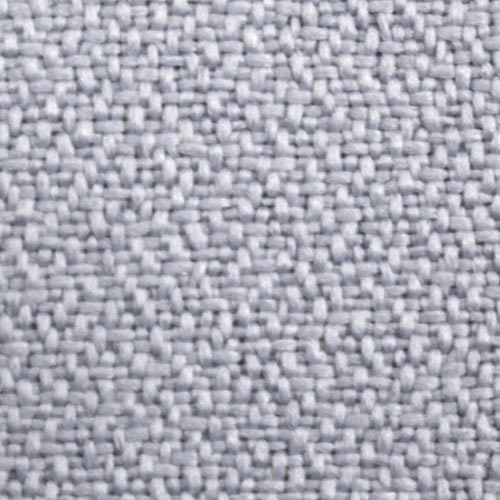

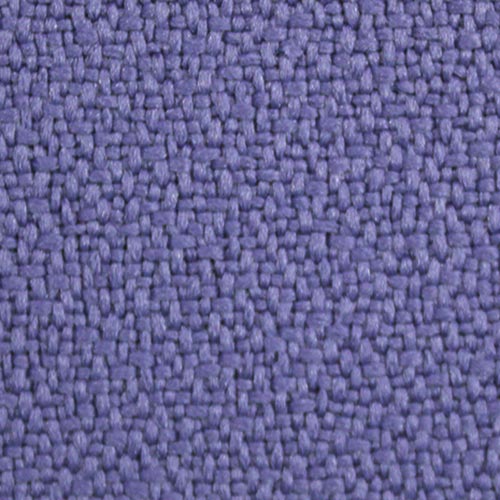

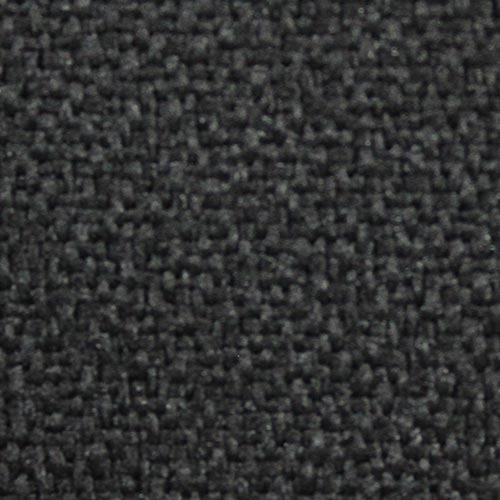

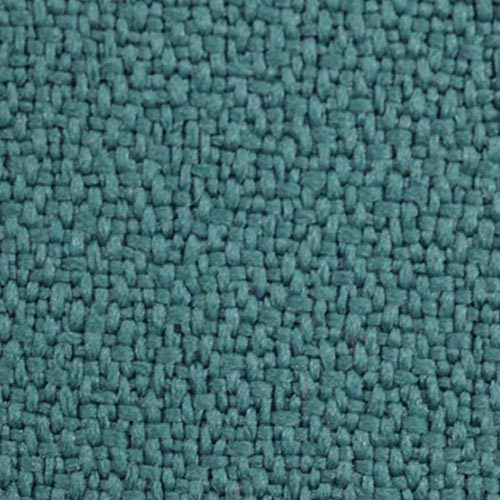

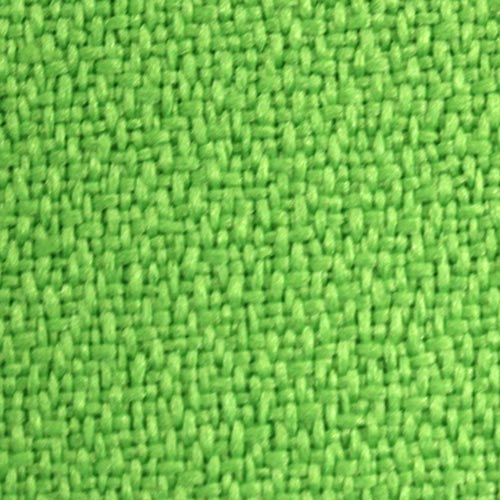

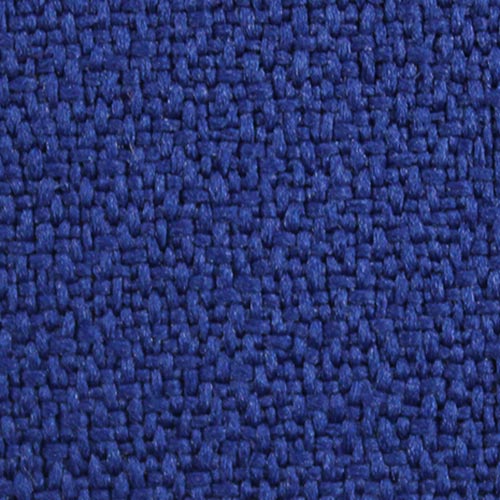

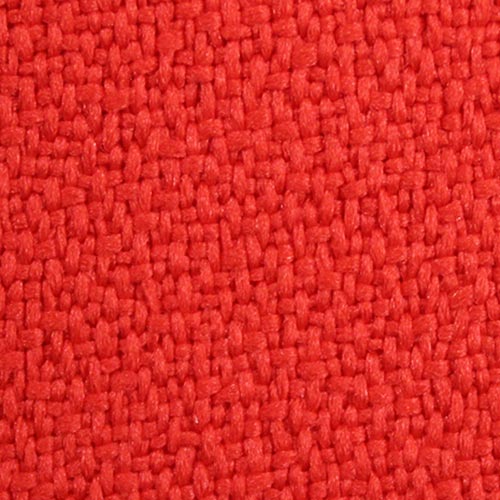

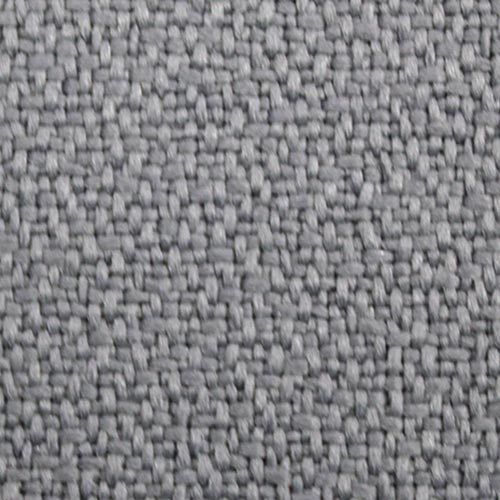

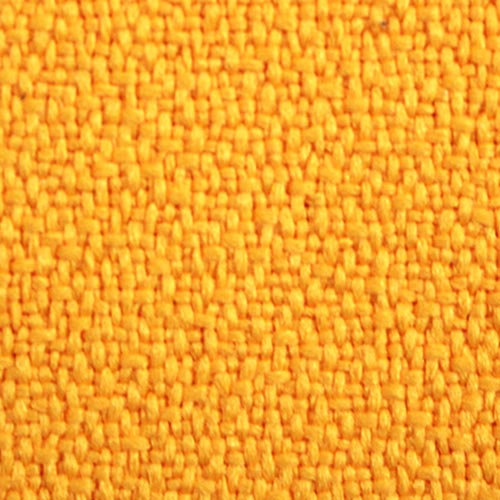

Universe Fabric - Morton+
Universe Collection has been tested to BS 5867-2: 2008 Type B
How customizable are the Morton Acoustic Screens?
Being able to choose how your new office screens look is important to ensure they look right and are fit for purpose. You’re able to choose;
- Size
- Fabric colour
- Framework colour
Are the Morton Screens linkable?
All Morton Office Screens are linkable and can be connected with other screens from the range. Flexible linking strips are included with each screen so you can link the screens as soon as you begin to set them up.
How long will dispatch take?
As a UK manufacturer, we make each acoustic partition to order. To ensure we deliver a high quality product we require 7-10 working days to dispatch.
7 day dispatch is available with the express manufacture
What’s the difference between Morton & Morton+ ?
The Morton & Morton+ have the same construction, however the Morton+ offers another fabric option with a wide choice of fabrics.
With 2 fabric selections available, we're confident you'll be able to find the right colour for your environment.
