Delta Acoustic Office Dividers

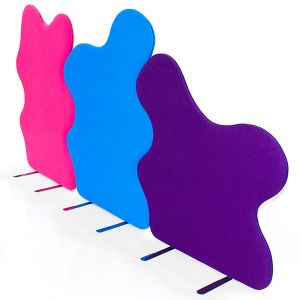

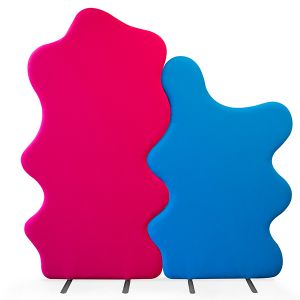

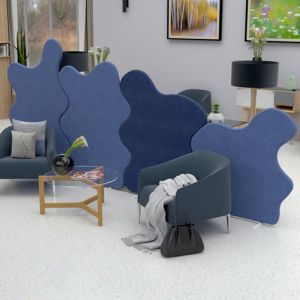

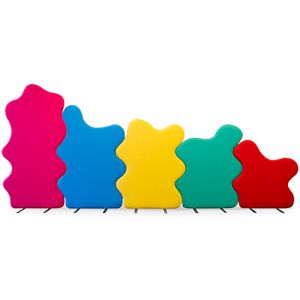

The Delta Acoustic Office Dividers are a collection of panels in various shapes and sizes, whilst offering a unique shape like no other design. Our Delta screens are famously known for the cloud range that replicates a cloud shape with soft and smooth curves. Each curve of the cloud fits together, so no matter the chosen size, a seamless barrier can be created.
Manufactured with 24mm foam, the acoustic range is a premium addition to the office space. Absorbing more noise at lower frequencies, the Delta dividers have the potential to make a big impact in areas that need it most.
Regardless of the shape and size, the screens follow the same process and includes the signature blue piped edging. Paired with a choice of fabric from the standard and deluxe options, the edging stands proud and contrasts against all colours.

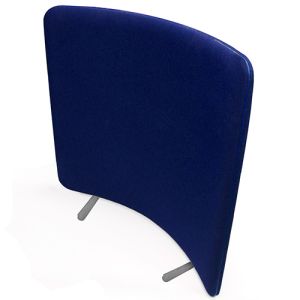

Select from a wide range of sizes and shapes, such as straight, cloud, wave top and curve. All shapes can be used together to transform the space in the best possible way.
Delta, Delta Deluxe & Delta Velvet
Within the Delta collection, Rap Office Screens offer a standard and deluxe line.
Featuring the same core and 24mm thick acoustic foam, the standard and deluxe have one stark difference – the fabrics. If more fabric choices are needed, or you're trying to match with current designs, the fabric options are vast and varied.
The Velvet screens are upholstered with a super soft fabric that feels just like velvet. Paired with the soft touch fabric, the patterns are tailored to schools, offices and medical environment.
All office dividers are supplied with a set of trip and wheel chair friendly feet and fit into the base. Once the stabilizing feet are fitted, the panels are ready to use for division and sound control.
How can acoustic screens help your space?
A common issue with open plan space can be the noise and how this affects day to day working. This can easily be remedied by implementing acoustic office screens into the areas of concern, without disrupting the layout of the office.
Acoustic panels work by absorbing soundwaves and reducing echoes to create a quieter workspace. Positioning of the panel plays a part to the efficiency, add them to the areas of concern and surrounding areas to optimize the impact.
Creating bespoke layouts with non linking dividers
Our non linking divider won’t include a link strip but this doesn’t stop the potential of partition walls and custom layouts. Position the screens from edge to edge to finalise the configuration to achieve the seamless result.
As the panels aren’t linked, when it comes to moving in the future it’s possible by repositioning into the new location.
Making the free standing screens portable

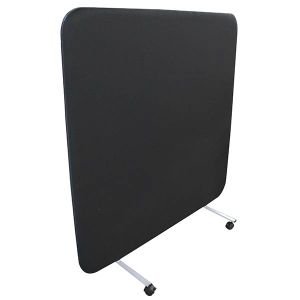

We’ve provided a set of stabilizing feet with each panel for a static finish but should you need to make the acoustic panels portable, it’s possible. From the accessories, castor wheels are available and promote easy movement.
Once the castor wheels have been fitted into the office partition screen, move to the areas that need the most attention. Designed for reducing noise in the work space, which is even more attainable with the portable attribute.
- Feature 24mm acoustic foam
- Wide range of shapes; curve, straight, wave top and the unique cloud
- All panels are finished with blue piped edging
- Free standing and desktop varations
- Choose from a collection of fabric colours
- Non linking panel design
- Designed to decrease workplace distractions
- Made to order to reduce waste
- Made in the UK
- Quick and easy installation
| Shape | Height | Width |
| Straight | 1200, 1400, 1600 & 1800mm | 800, 1000, 1200, 1500 & 1600mm |
| Wavetop | 1200, 1400, 1600 & 1800mm | 800, 1000, 1200, 1500 & 1600mm |
| Curved | 1200, 1400, 1600 & 1800mm | Chord distance 1131mm |
| Cloud | 1200, 1500, 1575, 1800 & 2175mm | 1200mm |
| Desktop | 400, 500 & 600mm | 800, 1000, 1200, 1500 & 1600mm |
Product specifications for the Delta Acoustic Office Screen range.
Screen Measurements
Screen thickness - 66mm
Foot Slot Information
Straight, curve & wave footslots are 265mm in from each side (varied on screens 800mm wide & smaller)
Delta Cloud (based on the measurement at the base of the screen) 220mm in from each side
Materials
Blue piped edging - 5mm dia flexible plastic
Stability feet - Steel
*stability feet are trip and wheelchair friendly
Feet raise the screen by 25mm and protrude 230mm from either side of the screen
Castor wheels (upgrade or as part of Delta portable) Raise screen by 77mm & protrude 255mm each side of screen
Internal - 18mm solid core
Foam - double layer of 12mm fire retardant acoustic foam on each side
Fire Safety Elements
Foam
12mm Combustion Modified Foam BS 5852-2: using ignition Source 5 Crib
Chipboard
Surface spread of Flames Class 2 tested to BS479-7
MDF
Surface spread of Flames Class 2 tested to BS479-7
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Steel
Components are not considered to be a fire hazard.
Fabric
Universe Fabric - Delta Standard
Universe Collection has been tested to BS 5867-2: 2008 Type B
Canopy Fabric - Delta Deluxe
Era Collection has been tested toBS 7176:2007+A1:2011 Low Hazard
How effective are the Delta Office Dividers in reducing noise?
While not 100% soundproof, incorporating acoustic screens has the potential to significantly reduce noise and help control sound in open plan spaces.
The effectiveness is also based on the placement, the number of panels used and the type of environment the screen is being placed in.
How are the screens delivered and how long will this take?
All office screens are sent on a pallet due to the size of the panel, ensuring a safe journey from us to you. The pallet is a wooden structure to provide the support and protection needed to transport larger items.
The delivery service is separate to the manufacture lead time. The standard manufacture time takes 10 working days, with 2 delivery options available. Choose from either a next working delivery or a 3 working day service. Find out more about the pallet delivery service.
What’s the difference between free standing and desktop divider?
The free standing styles are supplied with trip and wheelchair friendly feet and are floor standing. Allowing placement in open plan floor areas or between desks.
Whereas the Desk dividers are fixed to the desk only with the use of clamps. Requiring no floor space, yet has the potential to turn open desks into smaller working areas with increased privacy.
