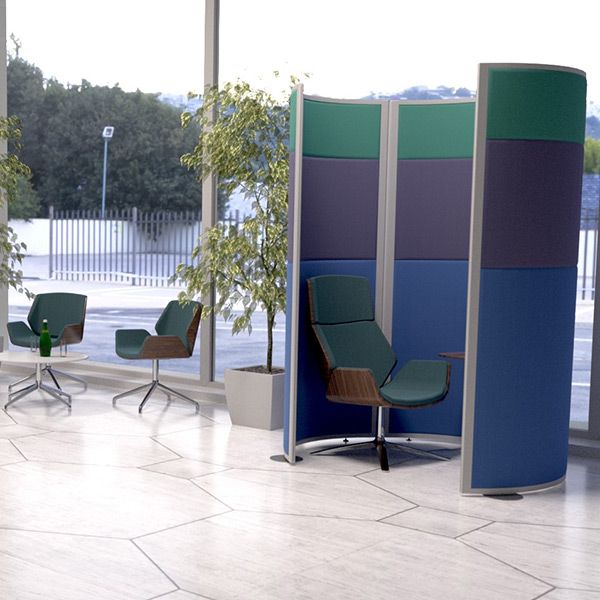

Concept Acoustic Telephone Pod
Take a small section of the room and implement the Telephone Pod that has space to include a table and chair. Create a comfortable space where phone calls can be taken, or an area to take a break from the hustle and bustle of the working environment.
Made with 3 of the Concept partition screens, the pod has a smooth curved shape and can have up to 3 fabric choices. The 3 part screen is unique to Rap and ensures more colour can be added to the workplace.
- Pod Size – 2.2m H x 1.6m W x 1.6m D
- Includes x 3 Concept Office Partitions
- Choose 3 fabrics per screen. Fabric samples available on request.
- Quick and easy assembly
- Made to order to minimise waste
- Manufactured with 24mm acoustic foam
- Black, white or silver powder coated aluminium frame work
- Made in the UK, by Rap Office Screens
Find out more about the Concept Office Partitions range.
- SKU
- 91431
- Lead Time
- 10 Working Days
Description
Key Features
Manufactured with 24m acoustic foam, the thicker foam supports high noise absorption, therefore keeping more noise from entering the space. Keep conversations quiet and private with the absorbing foam and high quality fabrics.
At a compact size, the phone booth can be added to most spaces, even smaller offices.
- Curved panels for shape and style
- Up to 3 fabric colours per screen
- Made to order
- Adds noise support for more privacy
- Linking panel design
Reviews
Customer Reviews
Production Specification
Product specifications for the Concept Acoustic Office Screen range.
Frame Measurements
Frame thickness - 28mm
Frame width - (side bars) - 50mm / (Top & bottom bar) - 22mm
Acoustic screen thickness (Core, foam & fabric) - 42mm
Foot slots in the frame are 290.5mm in from each end (Varied on screens 800mm W & smaller)
Materials
Frame - Powder coated aluminium
Stability feet - Steel
*stability feet are trip and wheelchair friendly
Feet raise the screen by 25mm and protrude 230mm from either side of the screen
Castor wheels (upgrade) Raise screen by 77mm & protrude 255mm each side of screen
Internal - 18mm solid core
Foam - 12mm fire retardant acoustic foam
Linking strips - Flexible PVC
Fire Safety Elements
Foam
12mm Combustion Modified Foam BS 5852-2: using ignition Source 5 Crib
Chipboard
Surface spread of Flames Class 2 tested to BS479-7
MDF
Surface spread of Flames Class 2 tested to BS479-7
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Aluminium
Extrusions has a melting of 660°C and is not considered to be a fire hazard.
Steel
Components are not considered to be a fire hazard.
Fabric Options
Woven Fabric
Woven Collection has been tested to BS 5867-2: 2008 & BS 7176 2007
Universe Fabric
Universe Collection has been tested to BS 5867-2: 2008 Type B
FAQ's
FAQ - Frequently Asked Questions
Here you'll find answers to our most asked questions for the Concept Acoustic Screens. Still can't find quite what you're looking for, or have something we should know? Send us an email, we're happy to help!
-
Can I choose more than 1 colour per screen?
Yes you can! We have designed the Concept 2 and 3 part for this reason, so you’re able to choose more than one fabric colour per screen.
Mix and match colours as you create a unique acoustic office screen layout.
-
Can I add print?
On the full acoustic Concept Partition Screens it’s not possible to add any print, but on the concept screen with the acrylic panel it’s possible.
Add custom print to the acrylic panel in the form of any image, logo, or text.
-
How long will my screens take?
As the Concept Acoustic Screens are made to order, we require 10 working days to manufacturer and dispatch. We will make the screen to your desired size and colour selections.
-
Do I need to purchase anything additional to use the Concept Screens?
No, everything you need to get started is included. You’ll receive a set of trip and wheelchair friendly stability feet and a flexible linking strip.
-
Are the Concept Office Screens portable?
As standard, the Concept screens are supplied with stability feet which aren't portable. Upgrades to castor wheels are available to transform the static partition into a portable solution.
