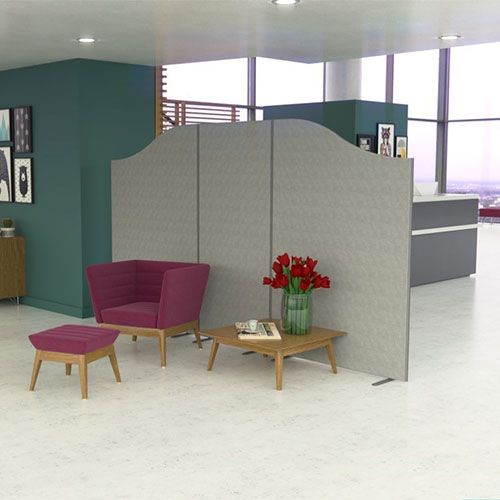

Budget 42mm Wave Top Acoustic Panels 1.8m High
Add a touch of flair and reliable acoustic performance with the Budget Wavetop Acoustic Panels. The high point of the wave reaches 1.8m with a 300mm drop stopping at 1.5m. The combination of heights representing high and mid-level divides whilst offering the space the distinctive wave shape.
The eye catching design adds softness that’s not achieved with traditional straight panels. To get more from the wave design, pair with straight panels to elongate the width of the divide. Connect with 2-way link strips that securely fastens one panel to the next and makes the end result seamless.
At the core of the build, the 12mm acoustic foam, supplies the support sought after in loud environments. Implement cost effective noise control to improve clarity and focus within shared spaces. Fully functional yet the smooth shape contributes to office design and brings a fresh feature to make subtle workplace adaptations.
Dispatched within 7 working days
- Includes set of Stabilising feet & 2 way link strip.
- Finished with Durable plastic edging - Available in Black or Grey
- The Wave Drop per screen is 300mm.
- Available in 4 widths, all at 1800mm-1500mm high
- Manufactured with 18mm solid core
- Budget Office Screens have 12mm Acoustic Foam both sides
- Total screen thickness = 42mm
To complete the design, the screens include a durable black or grey PVC edging. Pair with a fabric from the wide collection of colours, and customize for a bespoke finish.
Key features
- Made in the UK
- 1.8m height to add high level privacy
- Includes linking feature
- Wide range of fabric
- Smooth wave created with 2 heights
Product specifications for the Budget Acousic & Pinnable Office Screen range.
Screen Measurements
Acoustic screen thickness (Core, foam & fabric) - 42mm
Pinnable Screen thickness (Core & fabric) - 36mm
Foot slots in the frame are 290.5mm in from each end (Varied on screens 800mm W & smaller)
Wave Screens Only - 300mm Drop
Materials
Edging - PVC
Stability feet - Steel
*stability feet are trip and wheelchair friendly
Feet raise the screen by 25mm and protrude 230mm from either side of the screen
Castor wheels (upgrade or as part of Budget portable) Raise screen by 77mm & protrude 255mm each side of screen
Round Bases (upgrade) 200mm diametre
Acoustic
Internal - 18mm solid core
Foam - 12mm fire retardant acoustic foam
Pinnable
Internal – 18mm solid core + 8mm pinnable board either side
Linking strips - Flexible PVC
Fire Safety Elements
Foam
12mm Combustion Modified Foam BS 5852-2: using ignition Source 5 Crib
Chipboard
Surface spread of Flames Class 2 tested to BS479-7
MDF
Surface spread of Flames Class 2 tested to BS479-7
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Steel
Components are not considered to be a fire hazard.
Fabric
Woven Fabric
Woven Collection has been tested to BS 5867-2: 2008 & BS 7176 2007
Universe Fabric
Universe Collection has been tested to BS 5867-2: 2008 Type B
What variations of the Budget Screen are available?
The Budget Office Screen has a straight, curve, wave and portable style.
All the styles can be used together, enabling the ability to create a custom acoustic screen configuration.
Are the feet supplied with each screen?
Each Budget partition is supplied with a linking strip and set of stability feet (or castors wheels with the Budget Portable). The supplied stability feet are trip and wheelchair friendly, making them safe for all spaces.
How long will delivery take?
The standard lead time for dispatch is 7 working days, but if you’re in a hurry we do have an express option which reduces the lead time down to 5 working days. We need this amount of time to manufacture the screen to suit the chosen size, style and fabric colour.
Delivery can then take 1-3 working days, dependent on the chosen delivery service.
Will the Budget Screen help with noise?
The Budget range uses acoustic foam on both sides of the screen, which is useful when wanting to reduce noise. Loud environments can cause disruptions, adding acoustic partitions will eliminate unwanted noise and create a quieter working environment.
