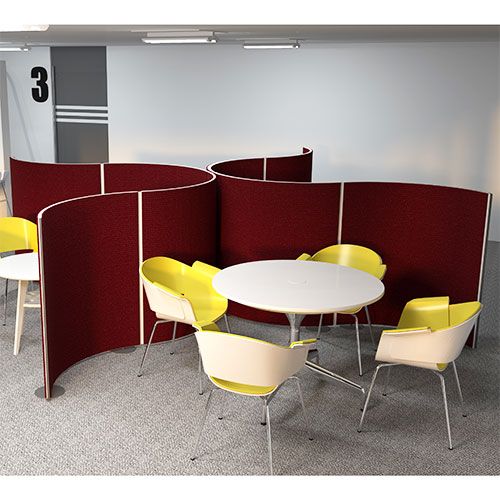

Budget 42mm Curved Acoustic Panels 1.8m High
Our Budget Curved Office Screens offer a cost effective way to introduce acoustic control and a smooth dividing system with a modern edge. The curved panels can be connected to other curved panels or to alternate shapes from the Budget range.
The curved shape showcases soft corners and removes the need for sharp edges and corners. Replacing straight panels with a curve introduces a fluid, natural flow whilst adding light to medium acoustic support. Built with 12mm acoustic foam, the screens add reliable sound absorption to improve background noise.
Reaching the height of 1.8m, the full height adds a barrier between the divided areas, separating the space and reducing the visibility. As for the layout, use the 2-way linking strips to connect multiple panels together, adding the amount of cover needed to achieve new work zones and quiet areas.
Dispatched within 7 Working Days
- Includes set of Stabilising feet & 2 way link strip.
- Finished with durable plastic edging - Available in Black or Grey
- The Curve screens are 1131mm wide, 800mm deep.
- Height - 1800mm High
- Manufactured with an 18mm solid core
- Budget Screens have 12mm acoustic foam both sides
- Total screen thickness = 42mm
To customize, select from a wide range of fabric colours and black or grey edging. Create a combination that supports current décor and colour schemes whilst focusing on adding new colours to the dynamic work environment.
Key features
- Sleek curve shape
- Use with other screens from the Budget range
- Made in the UK
- Wide range of fabrics
- Black or grey edging
Product specifications for the Budget Acousic & Pinnable Office Screen range.
Screen Measurements
Acoustic screen thickness (Core, foam & fabric) - 42mm
Pinnable Screen thickness (Core & fabric) - 36mm
Foot slots in the frame are 290.5mm in from each end (Varied on screens 800mm W & smaller)
Wave Screens Only - 300mm Drop
Materials
Edging - PVC
Stability feet - Steel
*stability feet are trip and wheelchair friendly
Feet raise the screen by 25mm and protrude 230mm from either side of the screen
Castor wheels (upgrade or as part of Budget portable) Raise screen by 77mm & protrude 255mm each side of screen
Round Bases (upgrade) 200mm diametre
Acoustic
Internal - 18mm solid core
Foam - 12mm fire retardant acoustic foam
Pinnable
Internal – 18mm solid core + 8mm pinnable board either side
Linking strips - Flexible PVC
Fire Safety Elements
Foam
12mm Combustion Modified Foam BS 5852-2: using ignition Source 5 Crib
Chipboard
Surface spread of Flames Class 2 tested to BS479-7
MDF
Surface spread of Flames Class 2 tested to BS479-7
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Steel
Components are not considered to be a fire hazard.
Fabric
Woven Fabric
Woven Collection has been tested to BS 5867-2: 2008 & BS 7176 2007
Universe Fabric
Universe Collection has been tested to BS 5867-2: 2008 Type B
What variations of the Budget Screen are available?
The Budget Office Screen has a straight, curve, wave and portable style.
All the styles can be used together, enabling the ability to create a custom acoustic screen configuration.
Are the feet supplied with each screen?
Each Budget partition is supplied with a linking strip and set of stability feet (or castors wheels with the Budget Portable). The supplied stability feet are trip and wheelchair friendly, making them safe for all spaces.
How long will delivery take?
The standard lead time for dispatch is 7 working days, but if you’re in a hurry we do have an express option which reduces the lead time down to 5 working days. We need this amount of time to manufacture the screen to suit the chosen size, style and fabric colour.
Delivery can then take 1-3 working days, dependent on the chosen delivery service.
Will the Budget Screen help with noise?
The Budget range uses acoustic foam on both sides of the screen, which is useful when wanting to reduce noise. Loud environments can cause disruptions, adding acoustic partitions will eliminate unwanted noise and create a quieter working environment.
